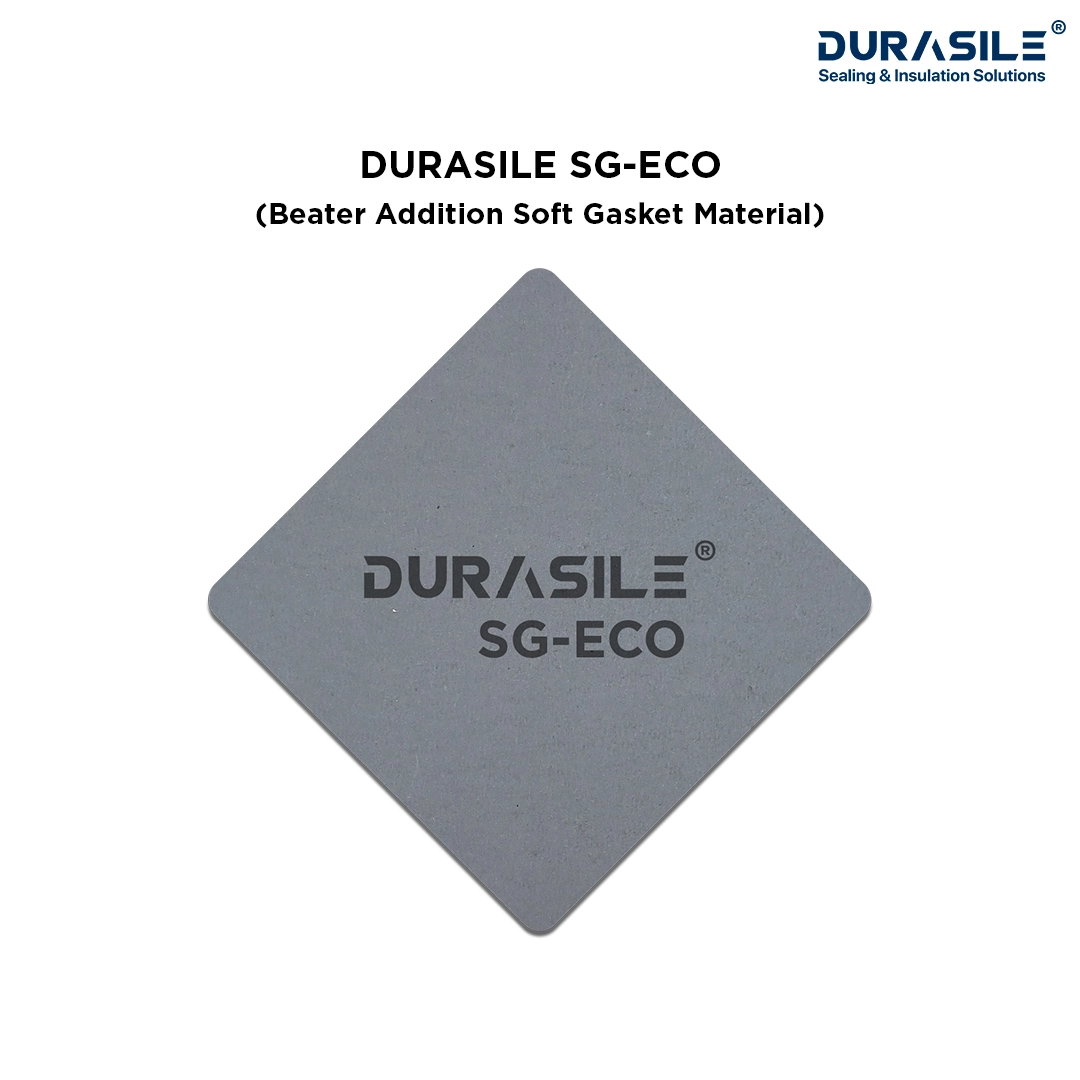

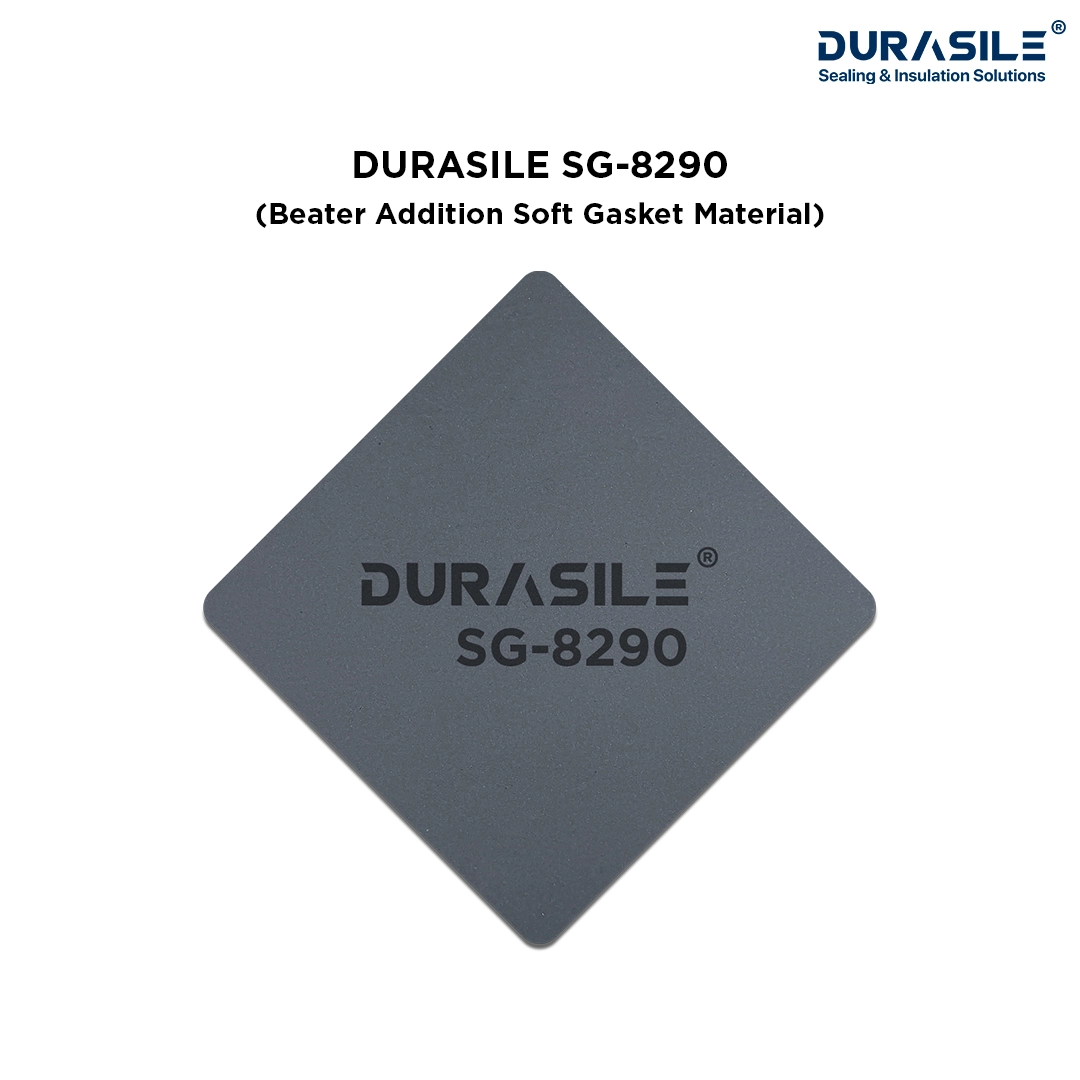

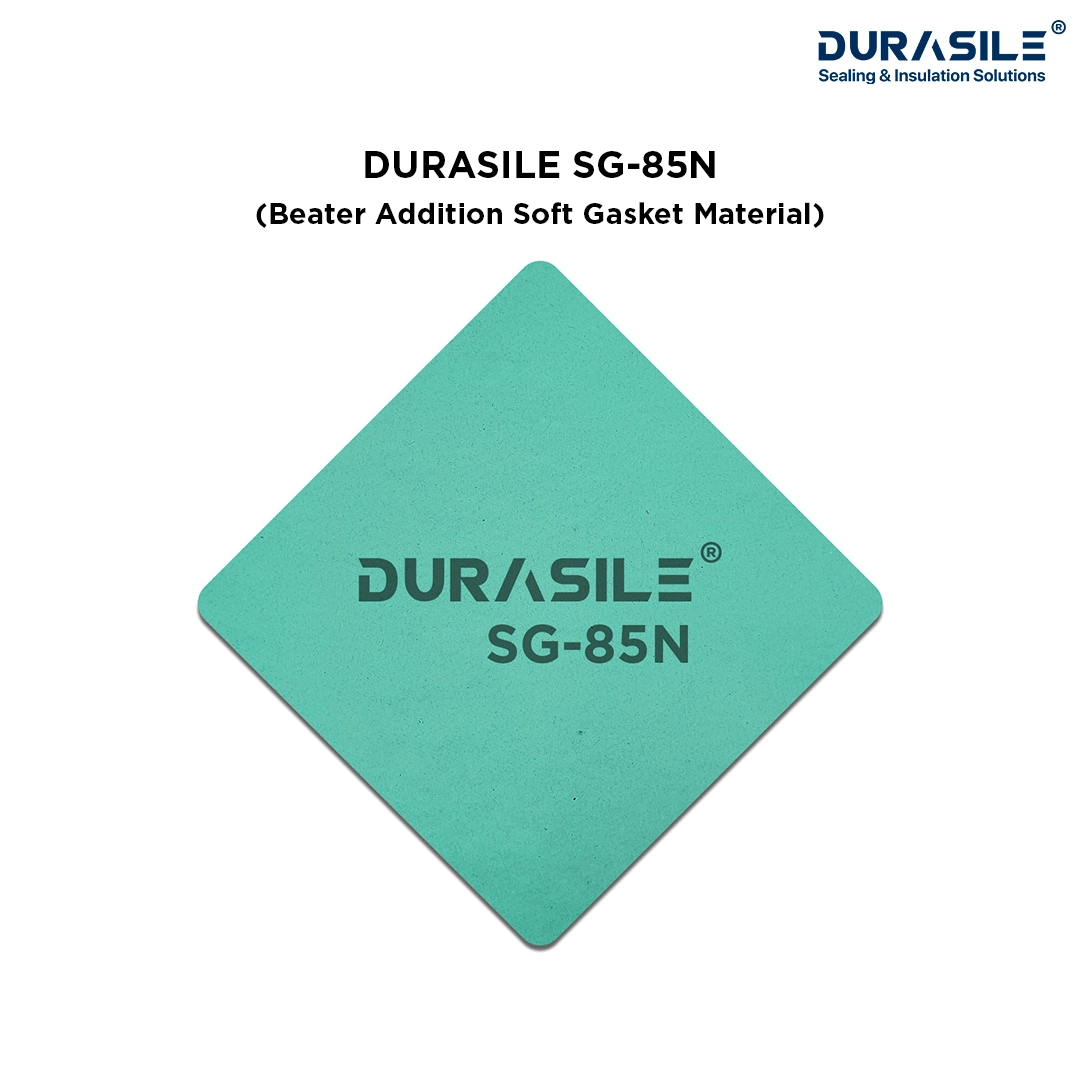

Beater Addition Soft Gasket Material

Our flexible gasket material is engineered with high recovery properties, making it ideal for soft gasket applications in automotive and industrial sectors. It provides excellent sealing performance for components like oil/fuel/water pumps, carburetors, gearboxes, oil pans, and more.

Key Specifications:

 • Max Operating Temperature : 180°C

 • Density : 1.30 ± 0.05 g/cm²

• Compressibility at 350 Kg/cm² : 15% - 30%

• Recovery (min.) : 35%

• Tensile Strength : 110 Kg/cm² (min.)

• Available Thickness : 0.40 - 1.50 mm

 • Roll Width : 1000 ± 20 mm

• Roll Weight : 50 Kgs Button :

This flexible gasket material is made from a blend of reinforced fibers and nitrile butadiene binders, offering high recovery properties and excellent sealing performance. It is ideal for soft gasket applications in oil/fuel/water pumps, carburetors, gearboxes, oil pans, and more, ensuring reliable and durable sealing in demanding conditions.

Key Specifications:

• Max Operating Temperature : 180°C

• Density : 1.20 ± 0.05 g/cm²

 • Compressibility at 350 Kg/cm² : 15% – 30%

• Recovery (min.) : 35%

• Tensile Strength (Kg/cm²) : 110 (min.)

• Available Thickness : 0.40 – 1.50 mm

 • Roll Width : 1000 ± 20 mm

• Roll Weight : 50 Kgs Button

This high-quality gasket material is specifically designed for demanding, heavy-duty applications such as compressors, diesel engines, and other high-performance equipment. With excellent low flange pressure sealing ability and exceptional bolt torque retention, it provides reliable and long-lasting sealing solutions in tough environments.

Key Specifications:

• Max Operating Temperature : 205°C

• Density : 1.54 g/cm² (min.)

• Compressibility at 350 Kg/cm² : 13% – 25%

 • Recovery (min.) : 40%

• Tensile Strength (Kg/cm²) : 100 (min.)

 • Available Thickness : 0.40 – 1.50 mm

• Roll Width : 1000 ± 20 mm

• Roll Weight : 50 Kgs
