Gaskets

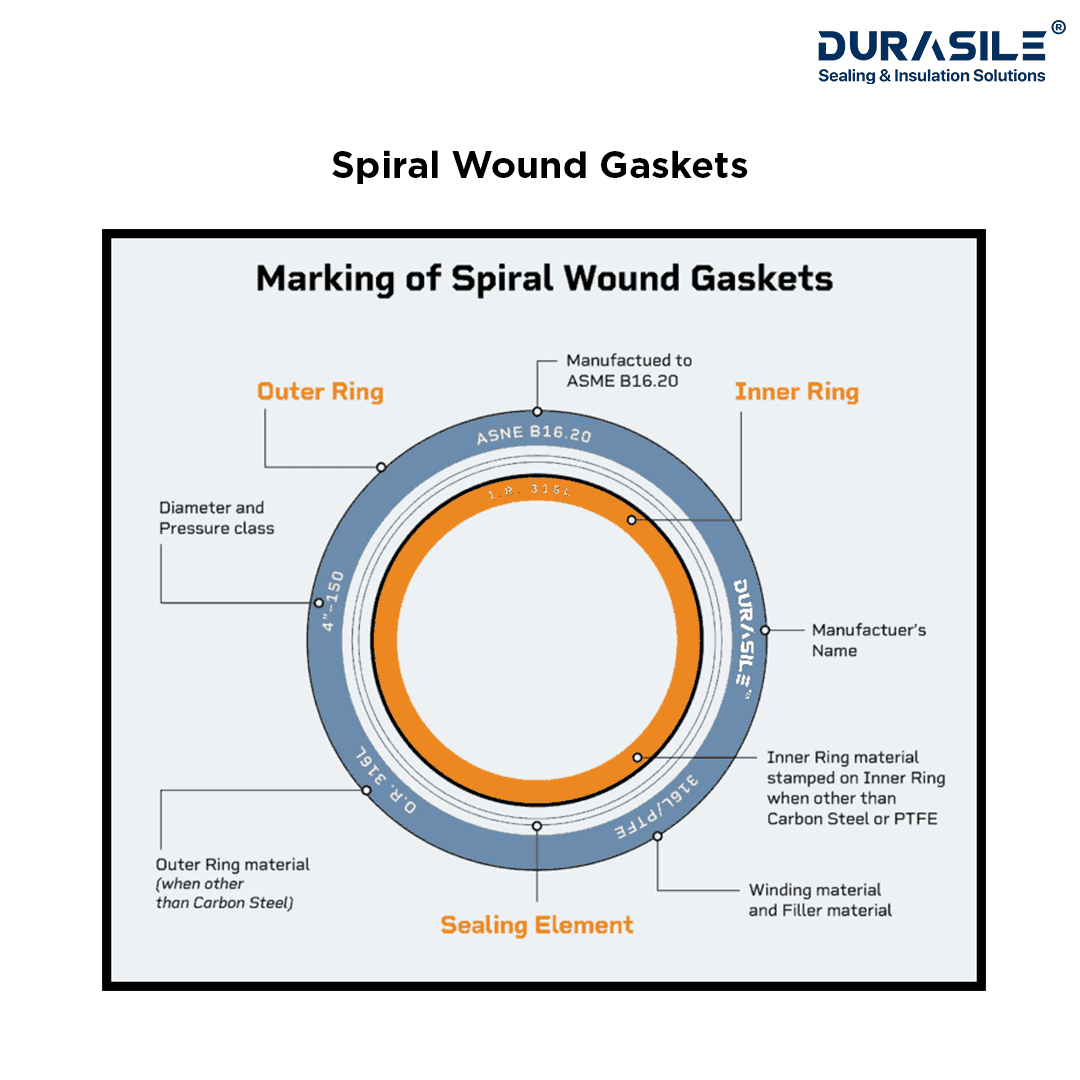

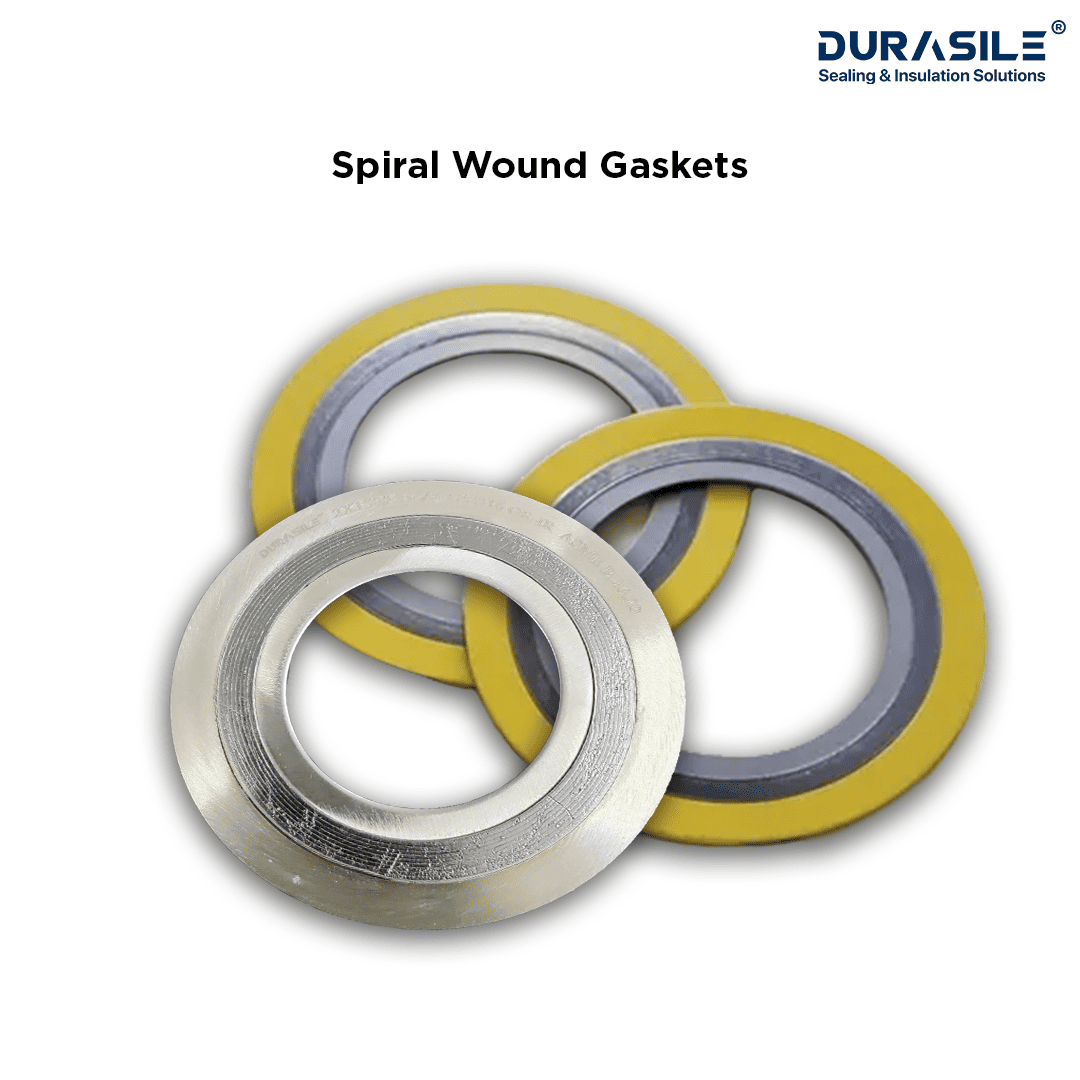

Spiral Wound Gaskets provide the ideal sealing solution for flanged joints, heat exchangers, boiler handholes, manholes, and other critical high-temperature, high-pressure applications. With exceptional resistance to all known corrosive and toxic elements, these gaskets ensure secure and leak-proof seals even under the most demanding conditions.

Standards and Customization:

 • Manufactured as per ASME B16.20 to suit ASME B16.5 flanges.

• Available in A Series and B Series to suit ASME B16.47 flanges.

• Conformance to DIN 2632-2638, IS Standards, and more.

 • Filler and winding materials can be customized based on chemical compatibility requirements.

Flange Suitability:

• BS1560 and ANSI B16.5: 1/2" – 24", 150-2500 lbs.

 • BS10: Tables D-T.

• B4504: 10-250 Bar.

Non-Asbestos Flange Gaskets are engineered to provide exceptional sealing between pipe sections, offering excellent resistance to heat and durability. Designed for applications involving water, steam, petrol, and natural gas, these gaskets ensure secure and leak-proof connections even under demanding conditions.

Standards and Customization:

• Manufactured as per ASME B16.20 standards.

• Suitable for flanges as per ASME B16.5 and ASME B16.47 Series A & B.

• Available in standard sizes and customizable non-standard sizes per customer specifications and drawings.

Types of Gaskets:

1. Full Face Gaskets:

 o Feature bolt holes and cover a large portion of the flange face.

                o Suitable for: Flat Face Flanges.

        2. Ring Gaskets/Inner Bolt Circle (IBC) Gaskets:

                o No bolt holes; designed to sit inside the bolts fastening the pipe flanges.

                o Suitable for: Raised Face Flanges.

Choose our non-asbestos flange gaskets for reliable sealing, long-lasting performance, and compatibility with a wide range of industrial applications. Contact us to learn more or request a custom quote!
