Non Asbestos Gasket Sheets

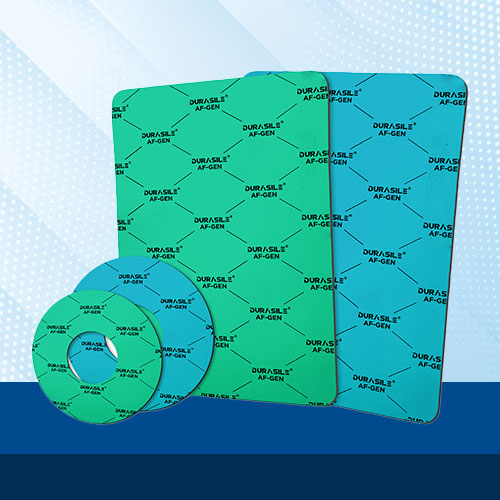

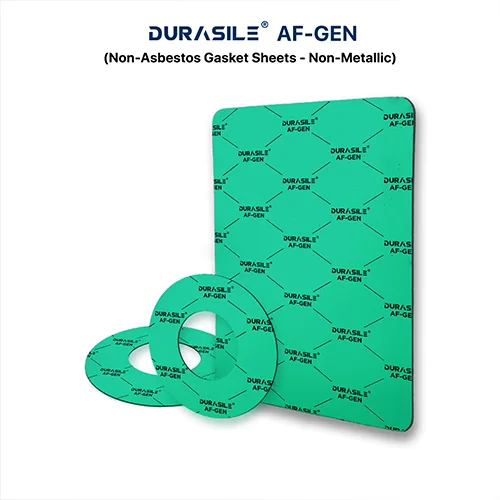

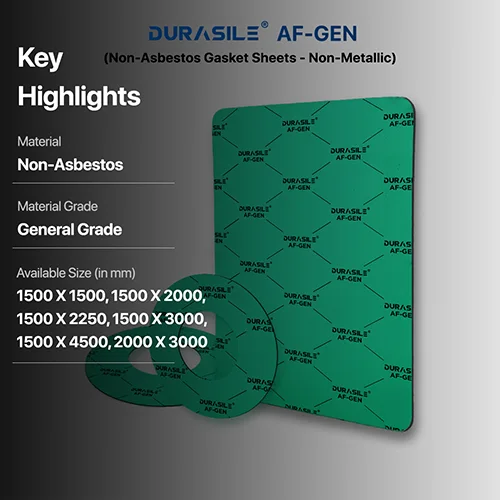

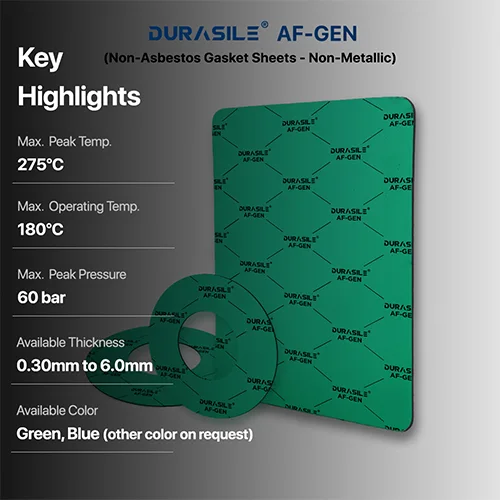

DURASILE AF-GEN is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries and in the water and chemical industries.
It is a general purpose grade suitable for low pressure steam, water, oils, fuels and inert gases for low stress conditions.
Composition :-
DURASILE AF-GEN gasket sheet is produced from a combination of mineral and organic fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : ASTM F 104 Line call out: F712232E34A9B6M4
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
250°C |
|
Maximum Operating Temperature °C |
180°C |
|
Maximum Peak Pressure (bar) |
50 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

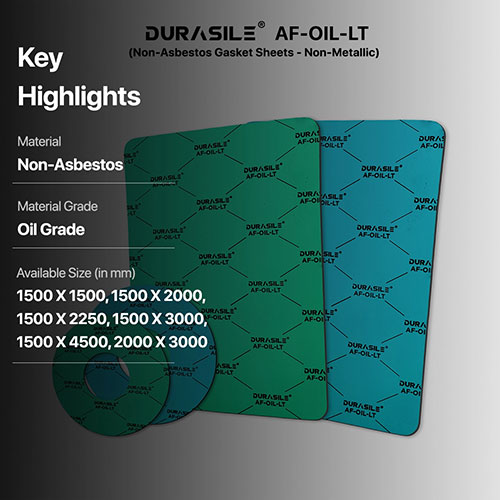

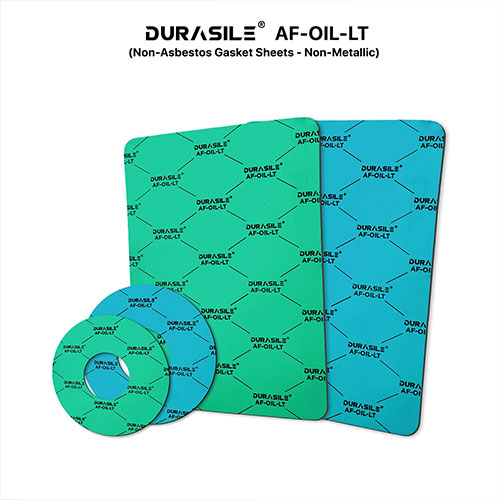

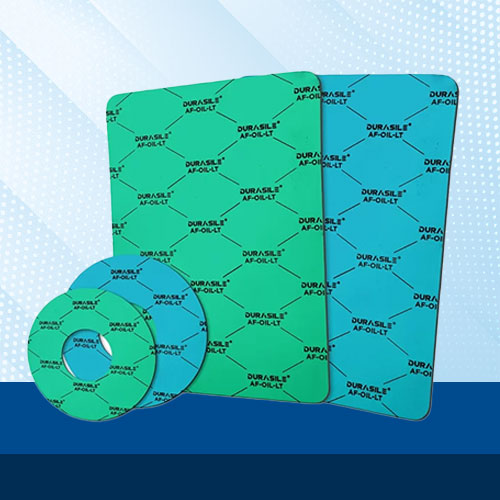

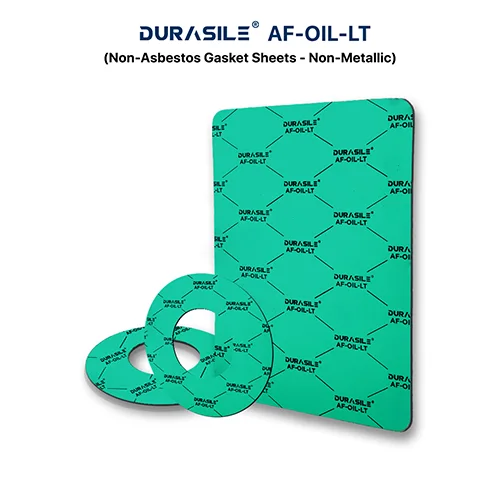

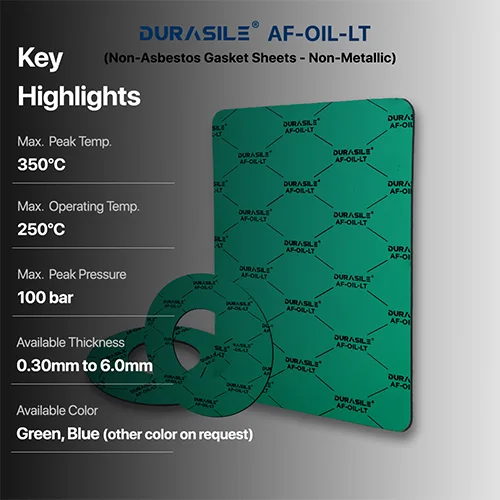

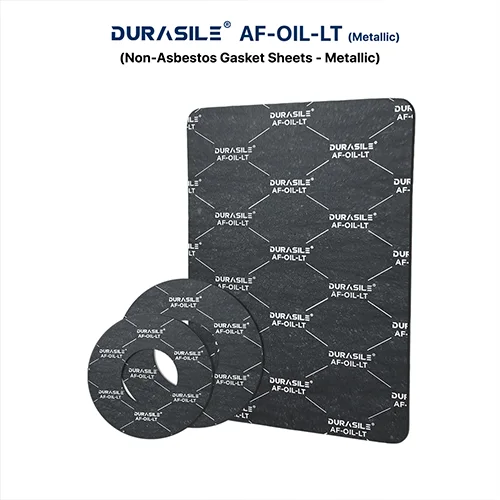

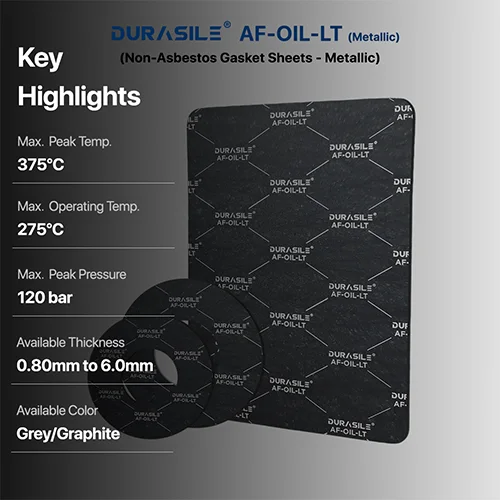

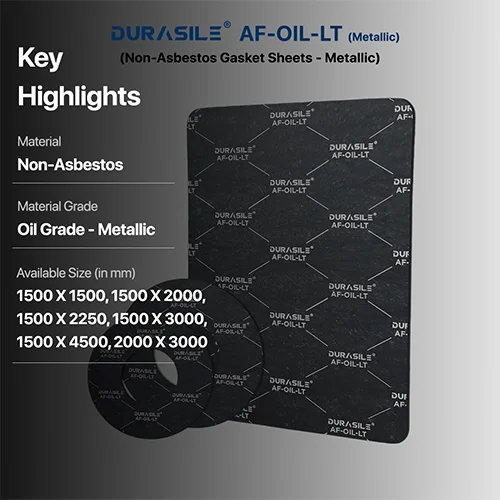

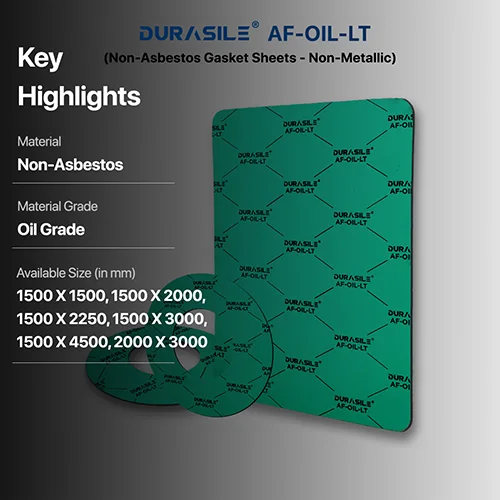

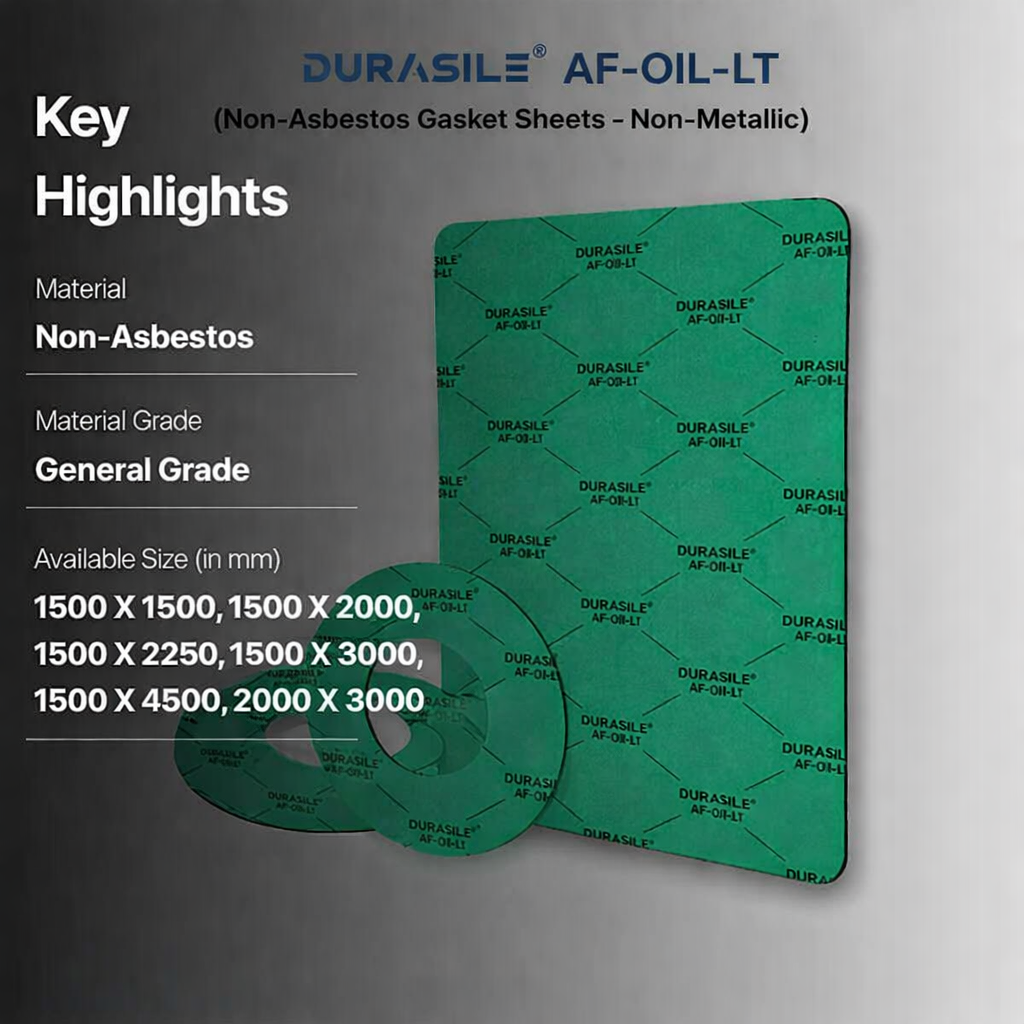

DURASILE AF-OIL-LT is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is suitable for oils fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, cooling liquids, most diluted acids and alkalis for medium stress conditions.
Composition :-
DURASILE AF-OIL-LT gasket sheet is produced from a combination of aramid fibres and organic fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification
Compliance : ASTM F 104 Line call out: F712122A9B4E12M9
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
300°C |
|
Maximum Operating Temperature °C |
220°C |
|
Maximum Peak Pressure (bar) |
80 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

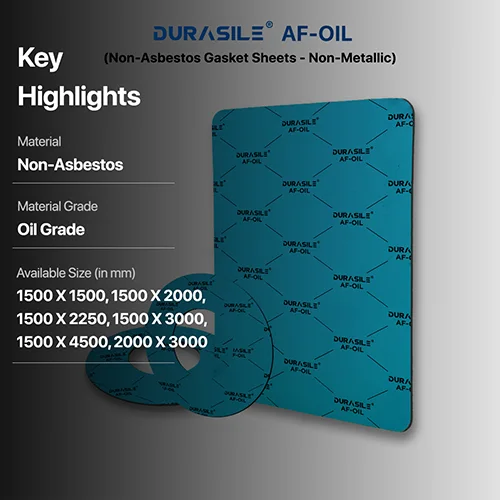

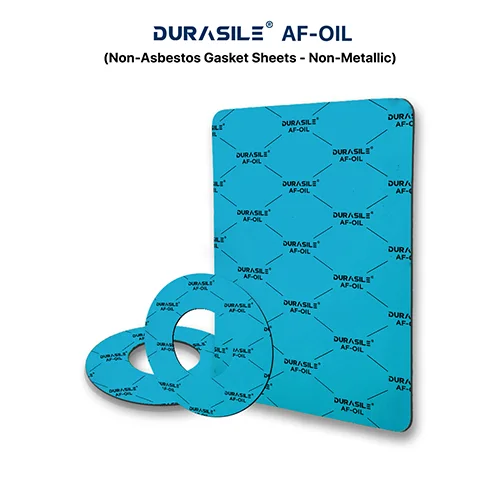

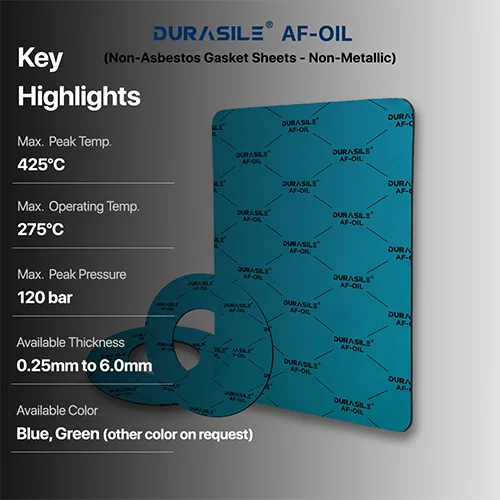

DURASILE AF-OIL is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is suitable for oils fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, cooling liquids, most diluted acids and alkalis for medium stress conditions.
Composition :-
DURASILE AF-OIL gasket sheet is produced from a combination of aramid fibres and organic fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : BS 7531 Grade Y & ASTM F 104 Line call out: F712911E12A9B5M5
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
400°C |
|
Maximum Operating Temperature °C |
250°C |
|
Maximum Peak Pressure (bar) |
100 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

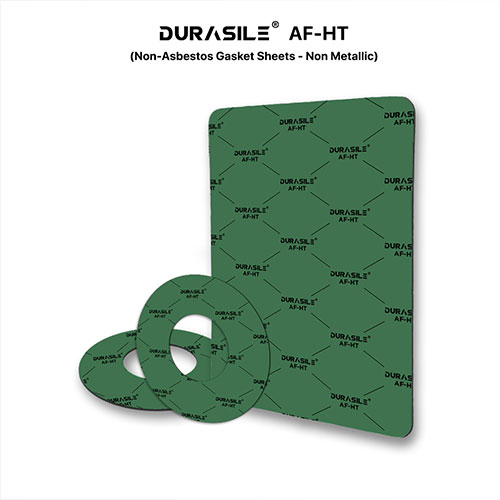

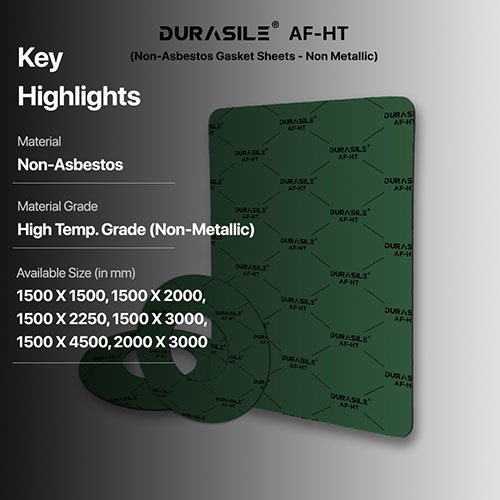

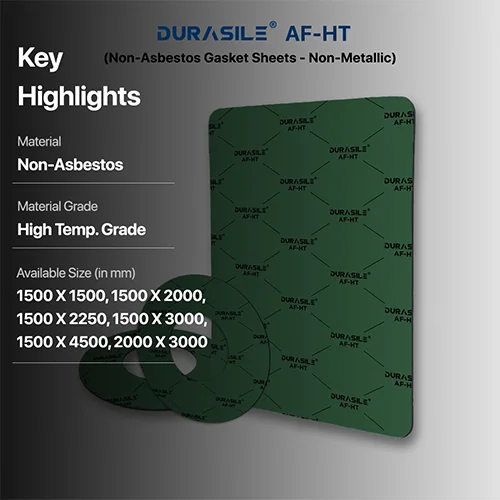

DURASILE AF-HT is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries. It is suitable for compressors, apparatus, transmission, gas meters, and internal combustion engines, pipelines & pumps etc.
Composition :-
DURASILE AF-HT gasket sheet is produced from a combination of aramid fibres and mineral fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : BS 7531 Grade X & ASTM F104F719911A9B3E19M6
| Technical Details | |
|---|---|
|
Maximum Operating Temperature °C |
400°C |
|
Maximum Operating Temperature °C |
270°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Dark green (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

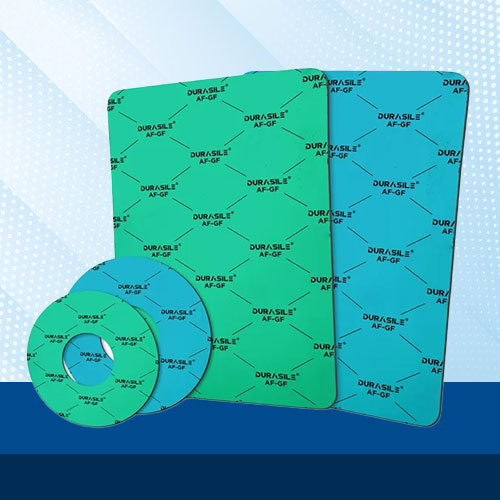

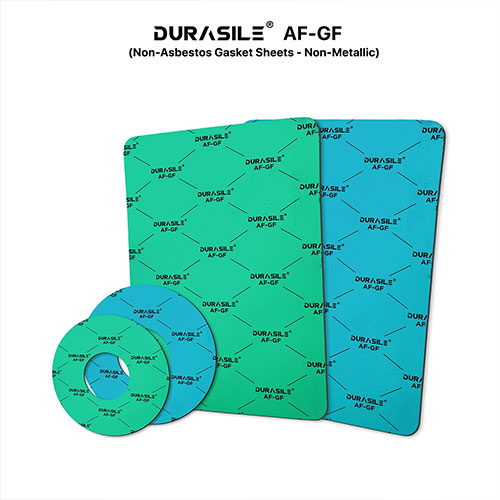

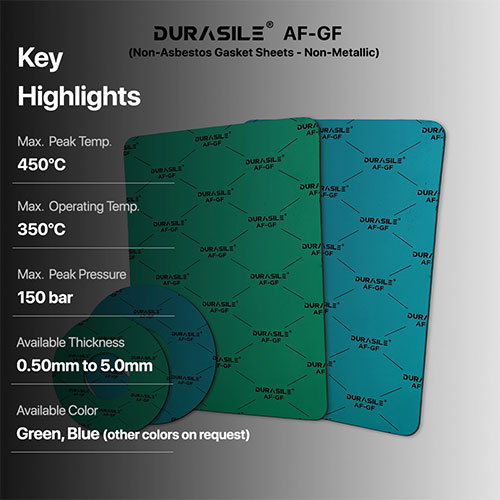

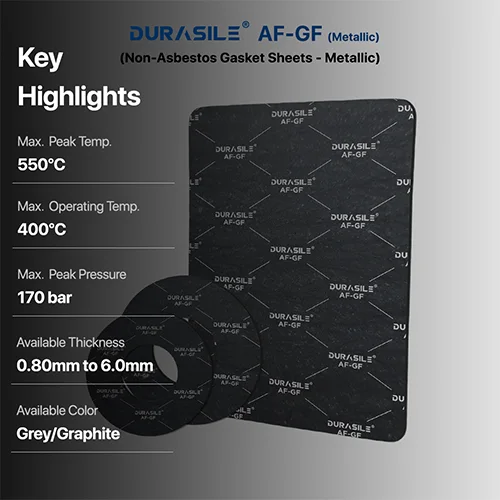

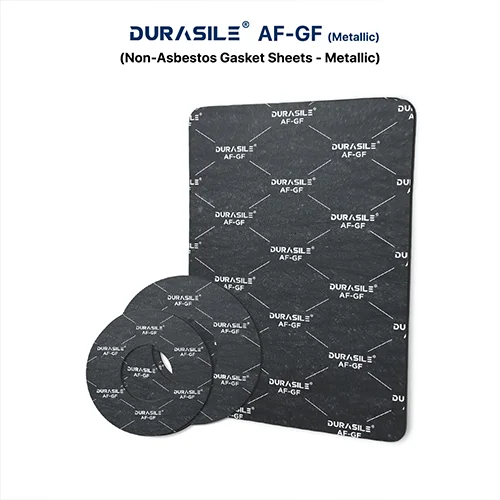

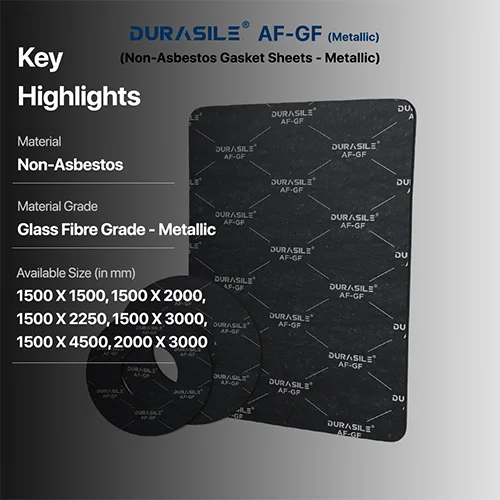

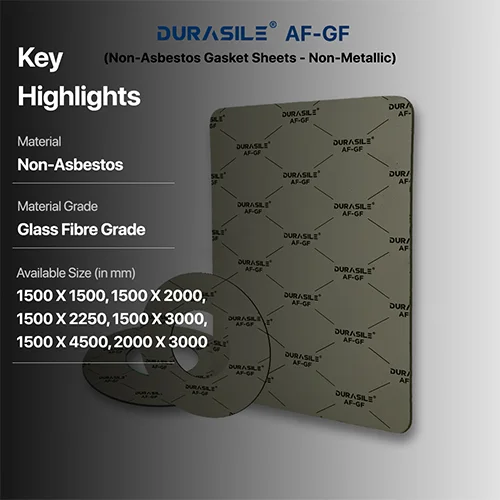

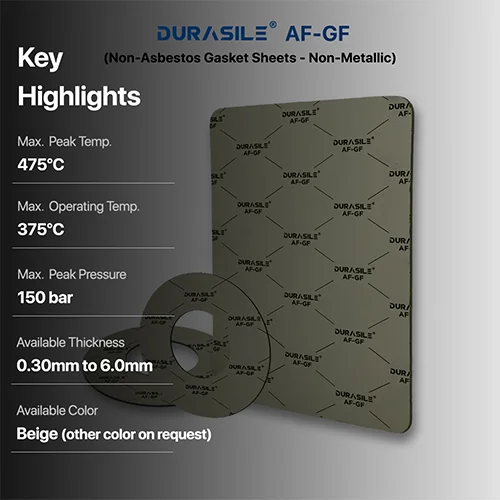

DURASILE AF-GF is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is suitable for excellent resistance to steam and hot water. A premium product with greater security through good stress relaxation. It can be used for sealing oils, fuels, gases, freons, pipelines, radiators, boilers and many other instances of flanged joints.
Composition :-
DURASILE AF-GF gasket sheet is produced from a combination of aramid fibres and glass fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : BS 7531 Grade X & ASTM F 104 Line call out: F712112A9B3E12A9M4
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
450°C |
|
Maximum Operating Temperature °C |
350°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

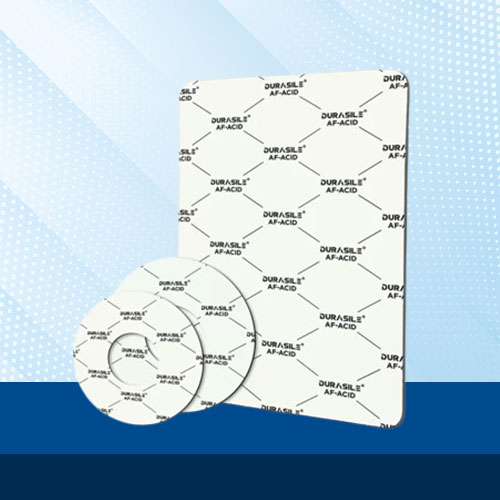

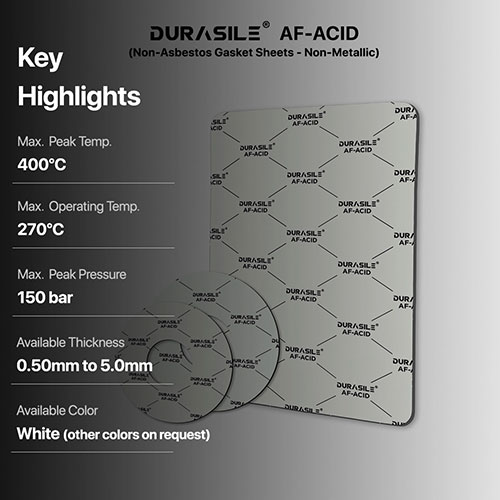

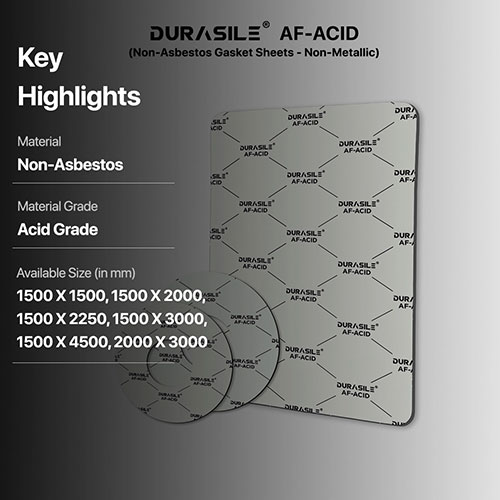

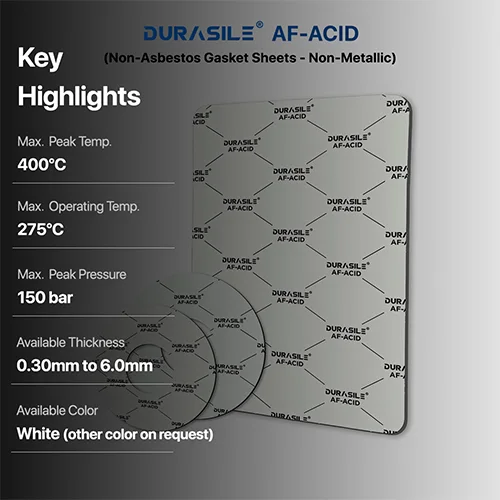

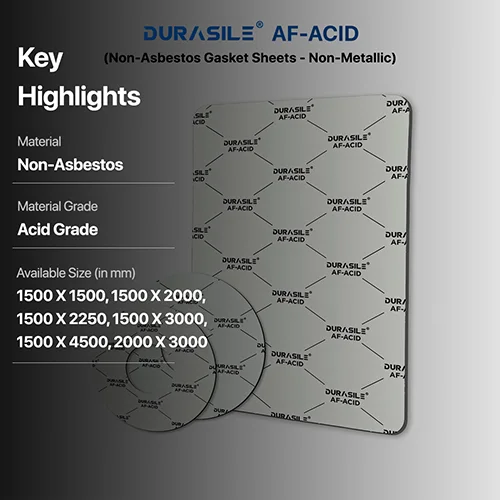

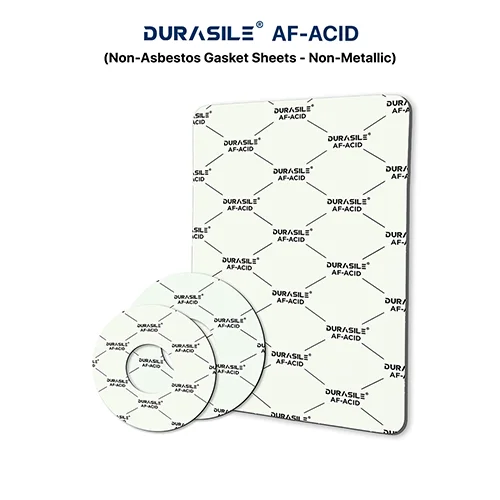

DURASILE AF-ACID is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries and in the water and chemical industries.
It is suitable for various highly aggressive media and very good chemical resistance to acid and alkaline media.
Composition :-
DURASILE AF-ACID gasket sheet is produced from a combination of mineral and aramid fibres which are bonded with synthetic elastomers (CSM). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : ASTM F 104 Line call out: F 719911 E19 A9 B3 M6
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
400°C |
|
Maximum Operating Temperature °C |
270°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
White (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

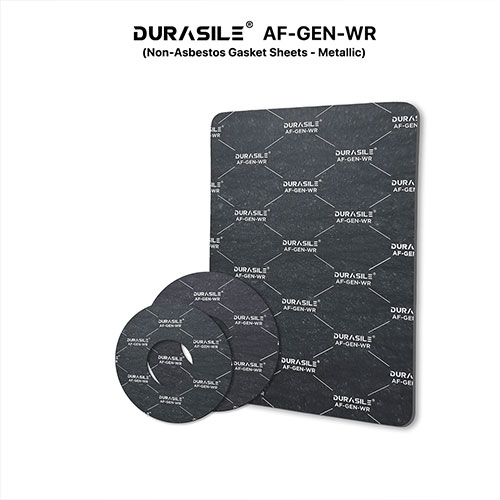

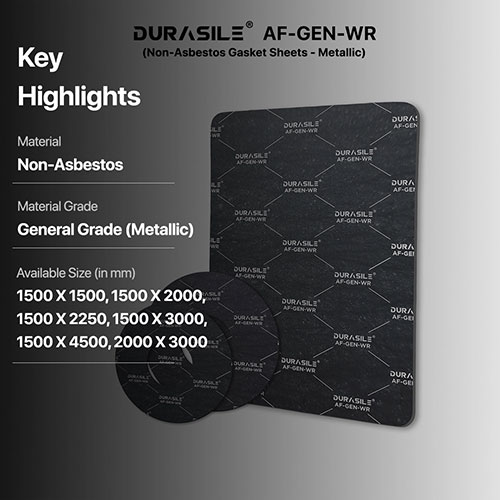

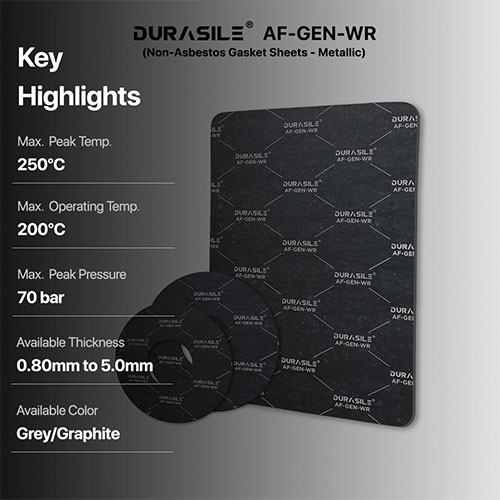

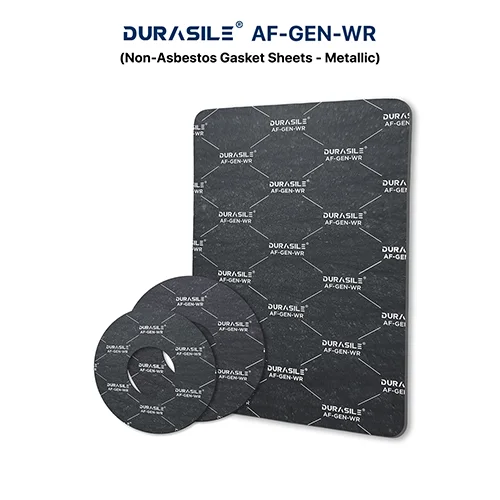

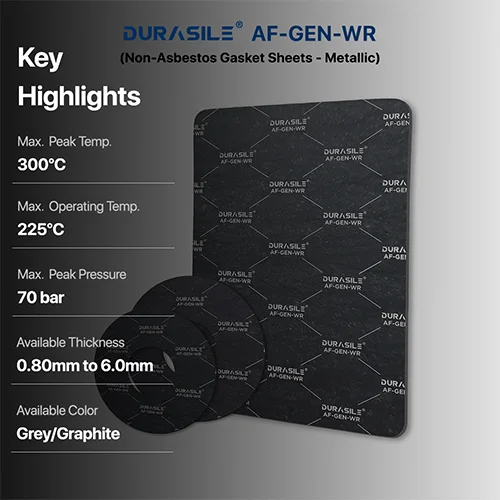

DURASILE AF-GEN-WR is a compressed non-asbestos (CNAF) gasket material with wire reinforced that has numerous applications in the process industries and in the water and chemical industries.
It is suitable for water/oil resistant gasket material for light loading. This metallic grade is suitable for medium pressure steam, water, oils, fuels and inert gases for low stress conditions.
Composition :-
DURASILE AF-GEN-WR gasket sheet is produced from a combination of mineral and organic fibres which are bonded with nitrile rubber (NBR) and wire reinforced. It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
250°C |
|
Maximum Operating Temperature °C |
200°C |
|
Maximum Peak Pressure (bar) |
70 bar |
|
Available Thickness (in mm) |
0.80 – 5.00 (other thickness available on request) |
|
Available Colors |
Grey/Graphite, Black (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

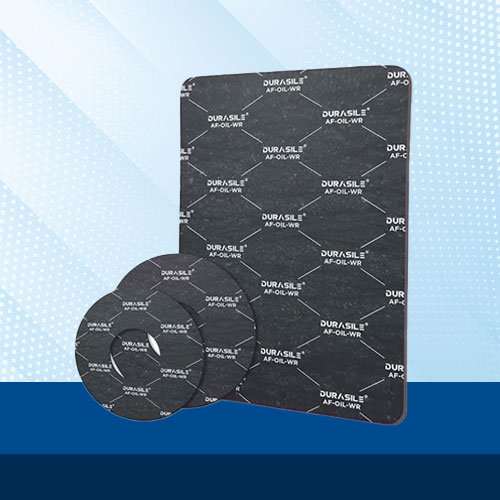

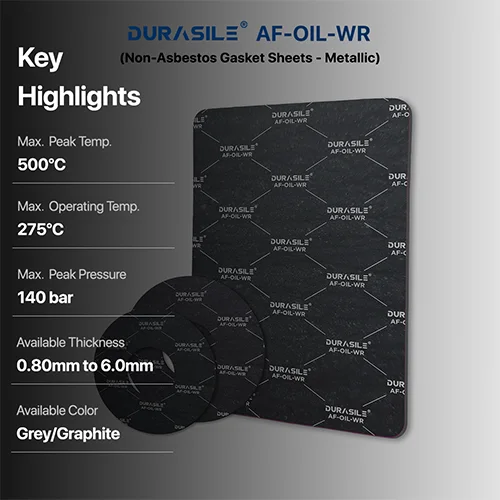

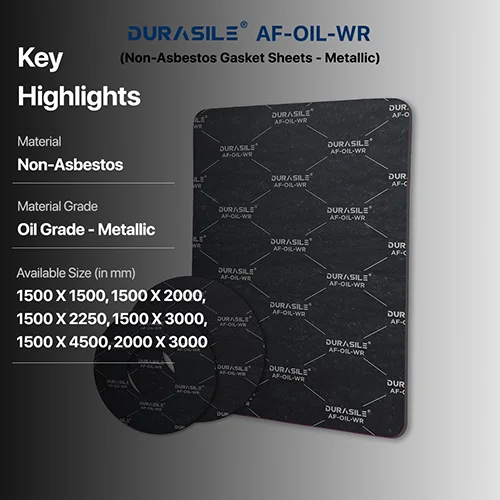

DURASILE AF-OIL-WR is a compressed non-asbestos (CNAF) gasket material with wire reinforced. It has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is a premium metallic grade suitable for oils, fuels, lubricants, alcohols, gases, Hydrocarbons, steams, water, cooling liquids, most-diluted acids and alkalis for medium stress conditions.
Composition :-
DURASILE AF-OIL-WR gasket sheet is produced from a combination of aramid fibres and organic fibres which are bonded with nitrile rubber (NBR) with wire reinforced. It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
450°C |
|
Maximum Operating Temperature °C |
250°C |
|
Maximum Peak Pressure (bar) |
120 bar |
|
Available Thickness (in mm) |
0.80 – 5.00 (other thickness available on request) |
|
Available Colors |
Grey/Graphite (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |

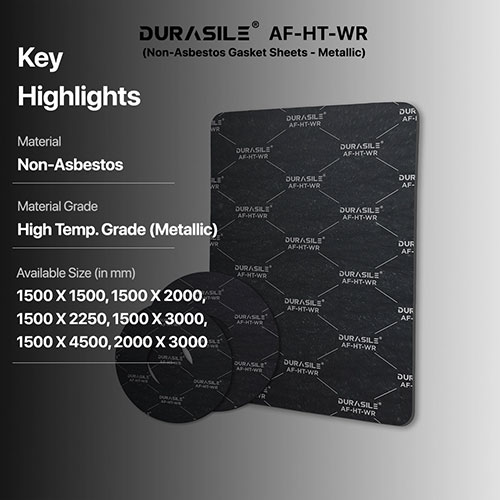

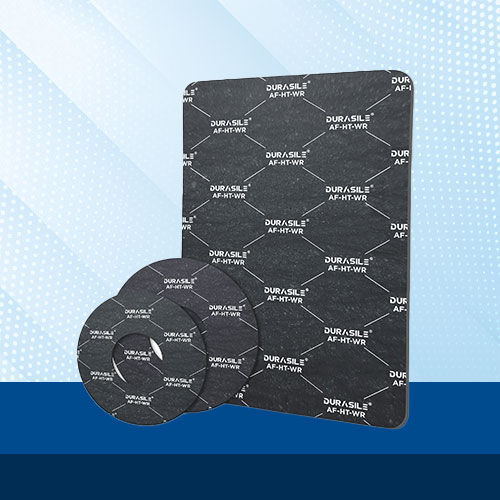

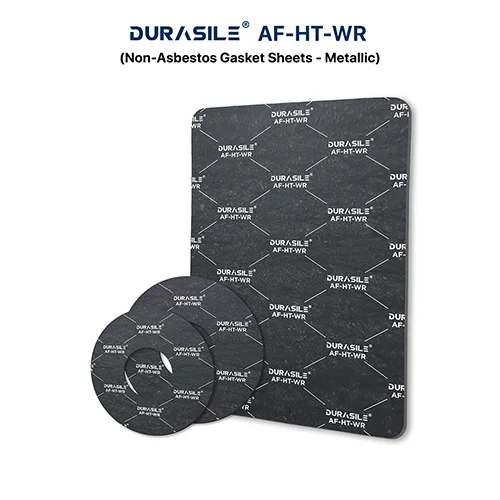

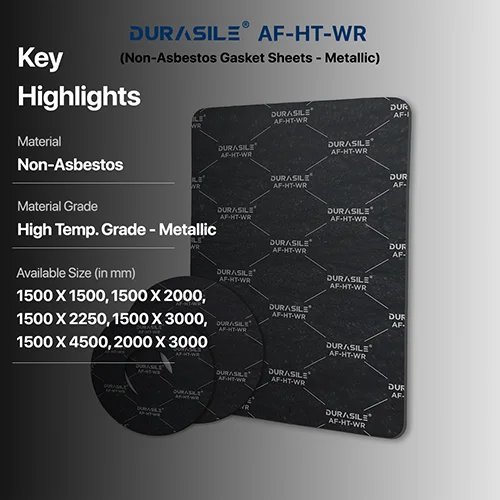

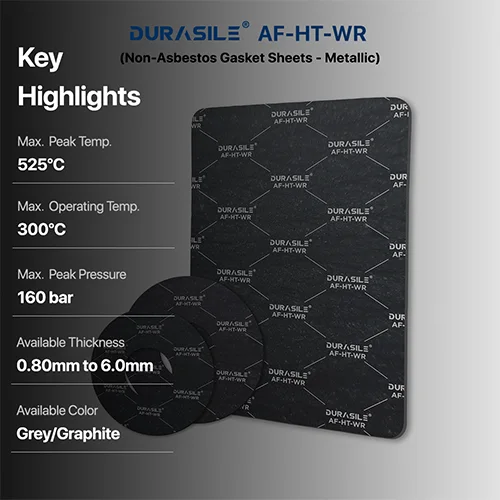

DURASILE AF-HT-WR is a compressed non-asbestos (CNAF) gasket material with wire reinforced. It has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is a premium metallic grade suitable for high performance, oil resistant gasket material with excellent thermal, chemical & mechanical properties. It is suitable for compressors, pipelines, apparatus, transmission, gas meters, internal combustion engines, pipe unions and pumps etc.
Composition :-
DURASILE AF-HT-WR gasket sheet is produced from a combination of aramid fibres and organic fibres which are bonded with nitrile rubber (NBR) with wire reinforced. It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
500°C |
|
Maximum Operating Temperature °C |
270°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.80 – 5.00 (other thickness available on request) |
|
Available Colors |
Grey/Graphite (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
