Thermal Insulation Millboard

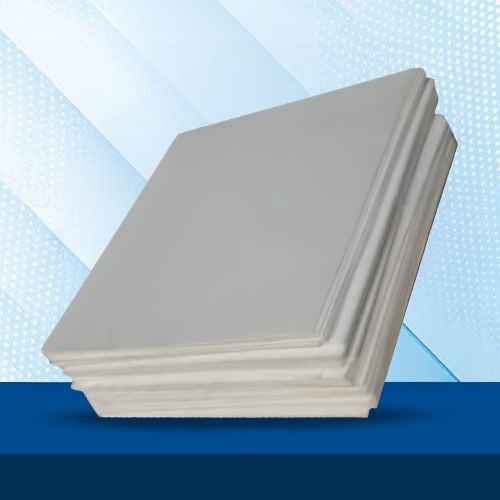

DURASILE AFB-ECO DURASILE AFB-ECO is produced from high quality inorganic mineral fibres, incombustible fillers and binders. These millboard sheets are environmentally friendly with zero percent asbestos content. This is a versatile thermal insulation and heat resistant material which can be cut with a die or a plotter for seals and thermal insulation purpose.

• Max. Temperature : 500⁰C

• Available Thickness (mm) : 2, 3, 4, 5, 6, 8, 10, 12

 • Sheet Size (mm) : 1000 X 1000

• Color : Off-White

 Features & Application :-

• Low Thermal & Electrical Conductivity

• High Temperature Resistivity

• It is widely used in Boilers & Furnaces

• Heat shield panels • Combustion chamber linings

• Induction furnace coil protection

DURASILE AFB-ECO DURASILE AFB-ECO is produced from high quality inorganic mineral fibres, incombustible fillers and binders.

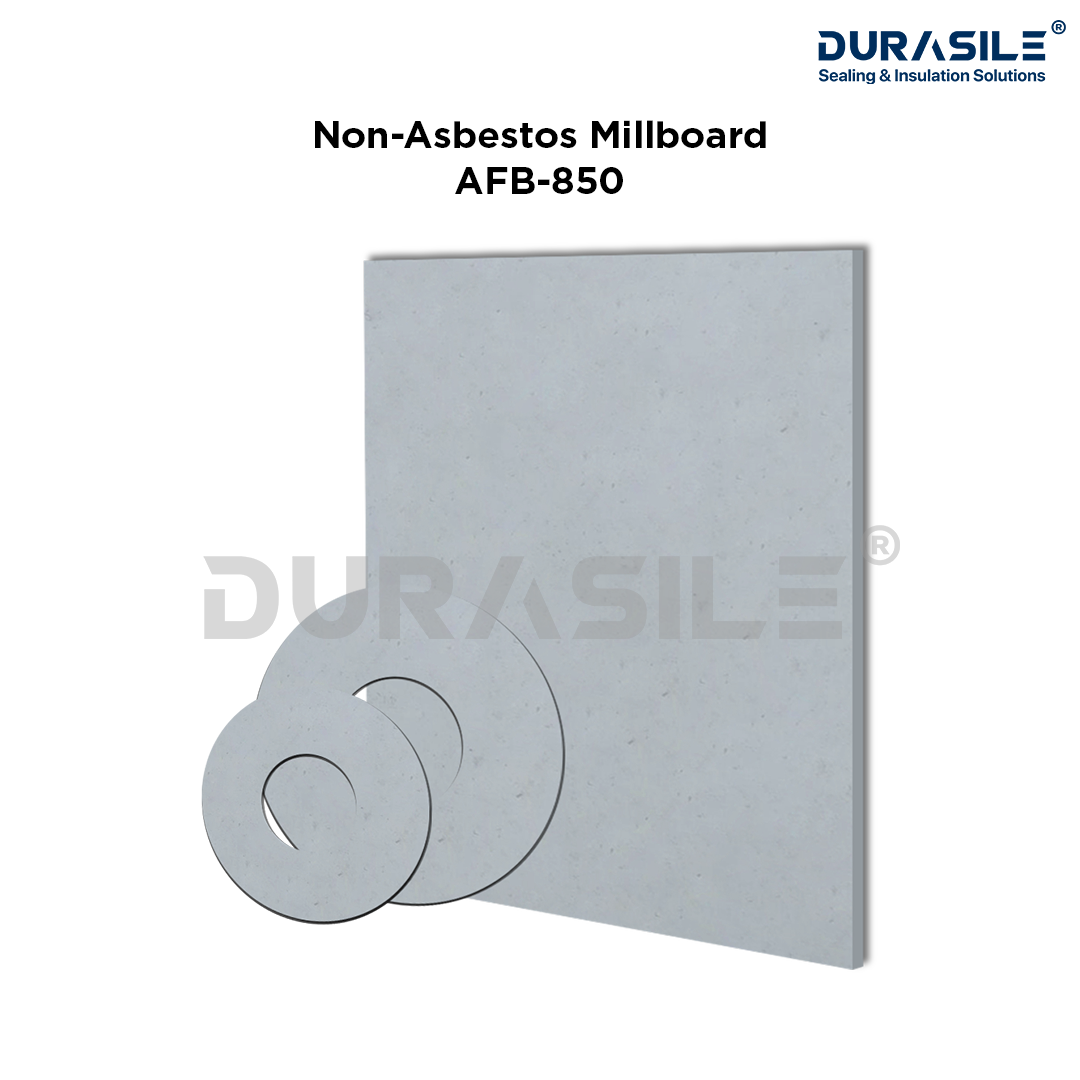

DURASILE AFB-850 is produced using selected mineral fibres and has a maximum operating temperature of 850°C. When cut and pressed, it has low dust emission and offers low wear resistance to tooling which ensures good definition for machined and pressed shapes whilst retaining sufficient mechanical strength for handling and installation.

 • Max. Temperature : 850⁰C

• Available Thickness (mm) : 2, 3, 4, 5, 6, 8, 10, 12

• Sheet Size (mm) : 1000 X 1000

• Color : Off-White

Features & Application :-

• Low Thermal & Electrical Conductivity

• High Temperature Resistivity

• It is widely used in Boilers & Furnaces

• Heat shield panels

• Combustion chamber linings

 • Induction furnace coil protection

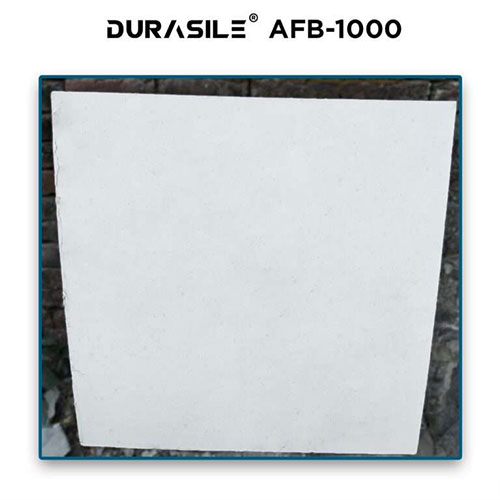

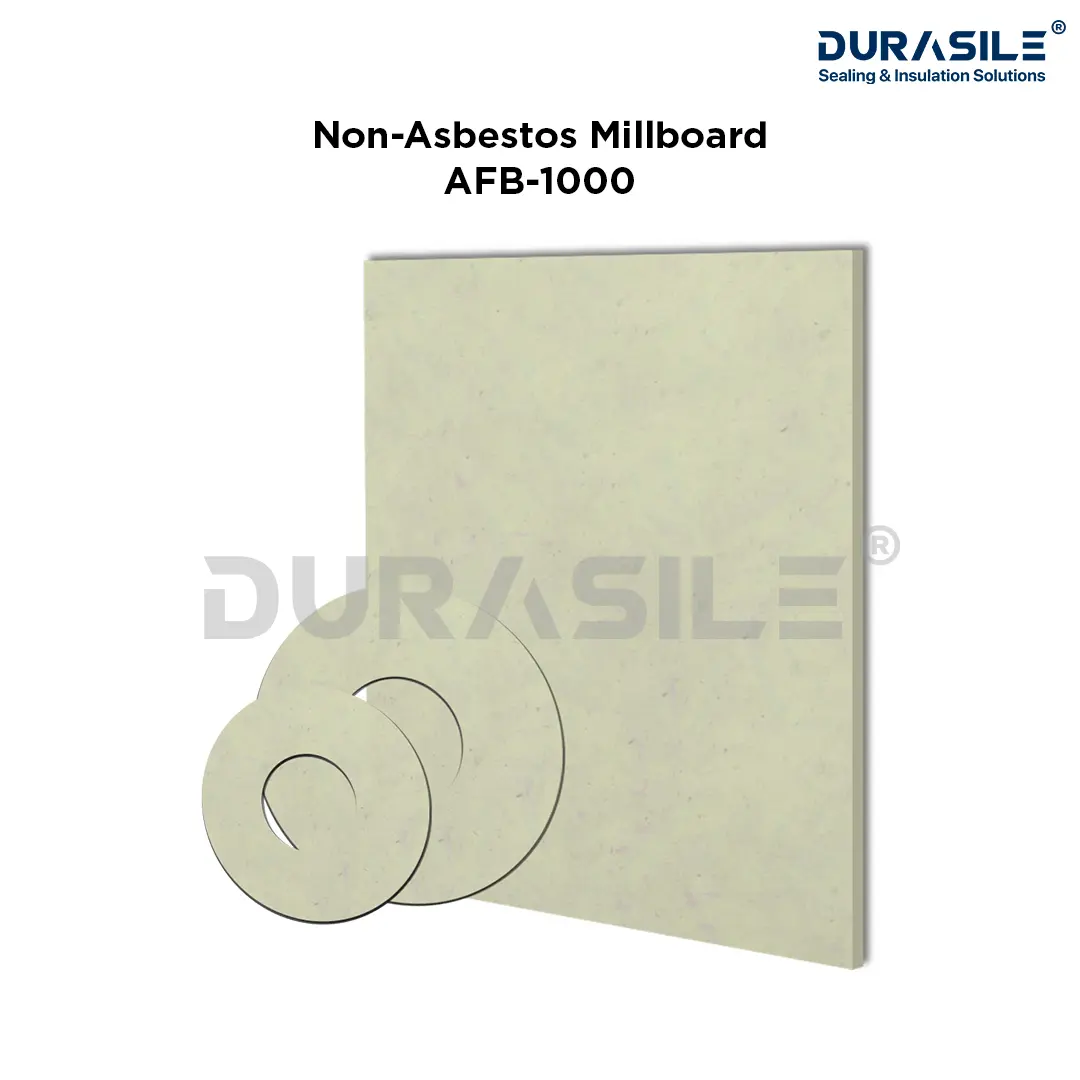

DURASILE AFB-1000 is produced using Ceramic fibres and other inorganic fibres and it has a maximum temperature of 1000°C. It has good electrical properties and offers excellent arc resistance. It can also be used for burner, boiler and dryer gaskets and can be pressed and machined.

• Max. Temperature : 1000⁰C

• Available Thickness (mm) : 2, 3, 4, 5, 6, 8, 10, 12

• Sheet Size (mm) : 1000 X 1000

• Color : Off-White

Features & Application :-

 • Low Thermal & Electrical Conductivity

• High Temperature Resistivity

• It is widely used in Boilers & Furnaces

• Heat shield panels

• Combustion chamber linings

• Induction furnace coil protection
