AF-GEN-WR (Metallic)
DURASILE AF GEN-WR (Metallic)

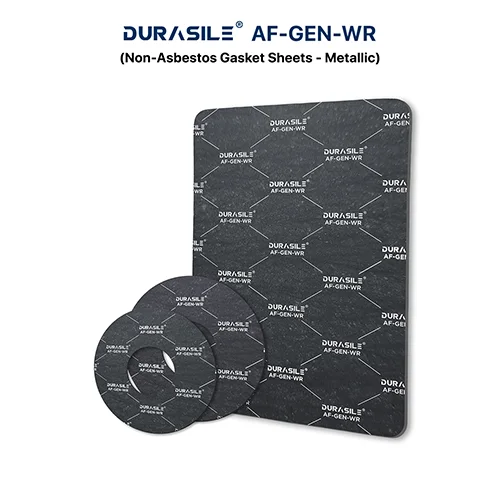

DURASILE AF-GEN-WR is a compressed non-asbestos (CNAF) gasket material with wire reinforced that has numerous applications in the process industries and in the water and chemical industries.
It is suitable for water/oil resistant gasket material for light loading. This metallic grade is suitable for medium pressure steam, water, oils, fuels and inert gases for low stress conditions.
Composition :-
DURASILE AF-GEN-WR gasket sheet is produced from a combination of mineral and organic fibres which are bonded with nitrile rubber (NBR) and wire reinforced. It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
250°C |
|
Maximum Operating Temperature °C |
200°C |
|
Maximum Peak Pressure (bar) |
70 bar |
|
Available Thickness (in mm) |
0.80 – 5.00 (other thickness available on request) |
|
Available Colors |
Grey/Graphite, Black (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
- Diluted alkalis
- Aliphatic solvents
- General chemicals
- Water
- Industrial oils
- Refrigerants
- Petroleum and Derivatives
- Air
- Automotive and Engine Building Industries
- Gas Supply
- General Supply
- Shipbuilding
