AF-GF (Non-Metallic)

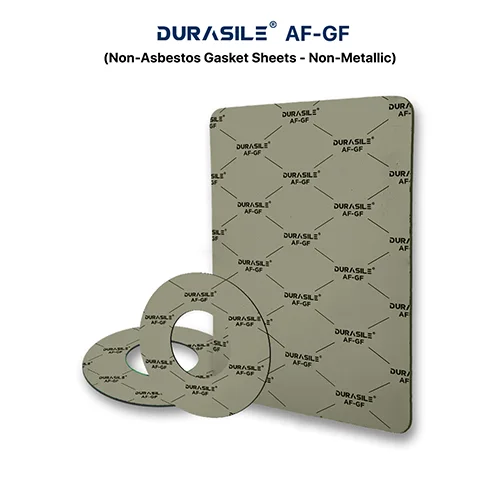

DURASILE AF-GF (Non-Metallic)
DURASILE AF-GF is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is suitable for excellent resistance to steam and hot water. A premium product with greater security through good stress relaxation. It can be used for sealing oils, fuels, gases, freons, pipelines, radiators, boilers and many other instances of flanged joints.
Composition :-
DURASILE AF-GF gasket sheet is produced from a combination of aramid fibres and glass fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : BS 7531 Grade X & ASTM F 104 Line call out: F712112A9B3E12A9M4

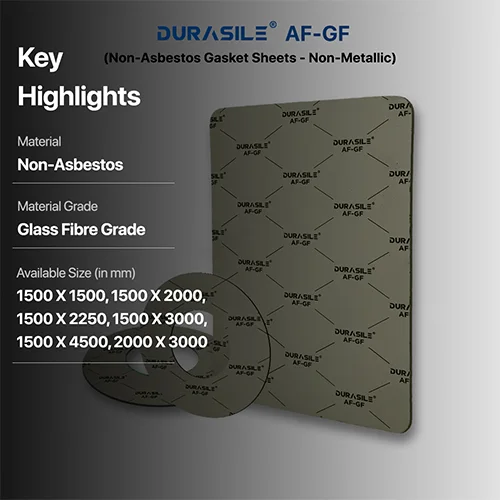

| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
450°C |
|
Maximum Operating Temperature °C |
350°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
- Diluted alkalis
- Aliphatic solvents
- General chemicals
- Water
- Industrial oils
- Refrigerants
- Petroleum and Derivatives
- Air
- Automotive and Engine Building Industries
- Gas Supply
- General Supply
- Shipbuilding
