AF-HT (Non-Metallic)
DURASILE AF-HT (Non-Metallic)

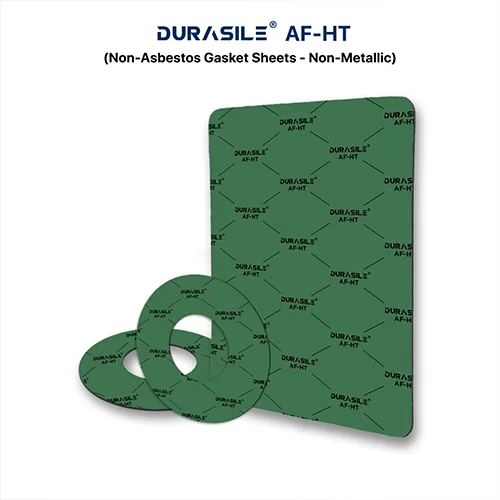

DURASILE AF-HT is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries. It is suitable for compressors, apparatus, transmission, gas meters, and internal combustion engines, pipelines & pumps etc.
Composition :-
DURASILE AF-HT gasket sheet is produced from a combination of aramid fibres and mineral fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification.
Compliance : BS 7531 Grade X & ASTM F104F719911A9B3E19M6
| Technical Details | |
|---|---|
|
Maximum Operating Temperature °C |
400°C |
|
Maximum Operating Temperature °C |
270°C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Dark green (other colors available on request) |
|

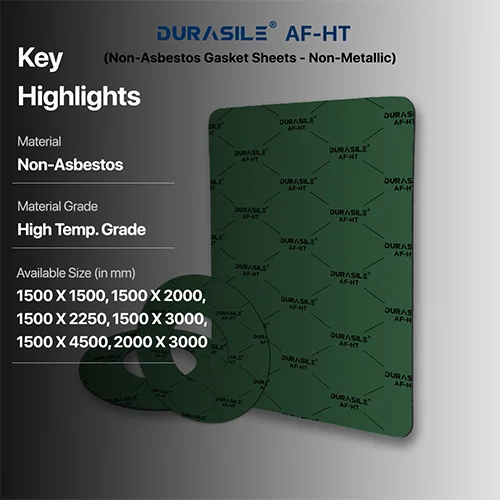

Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
- Diluted alkalis
- Aliphatic solvents
- General chemicals
- Water
- Industrial oils
- Refrigerants
- Petroleum and Derivatives
- Air
- Automotive and Engine Building Industries
- Gas Supply
- General Supply
- Shipbuilding
