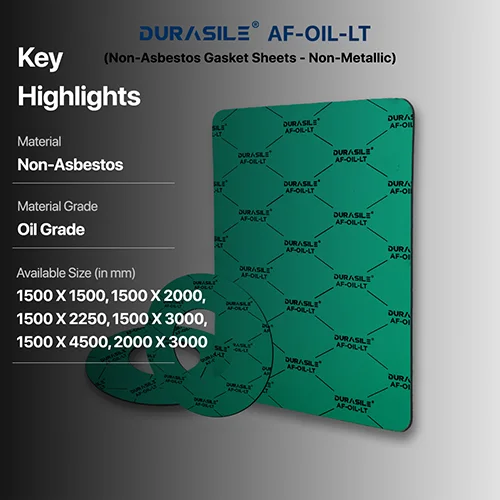

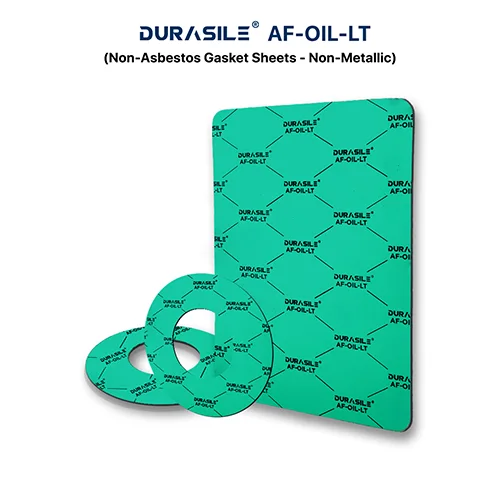

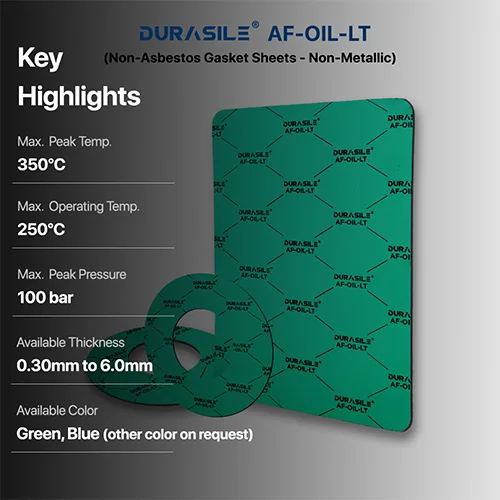

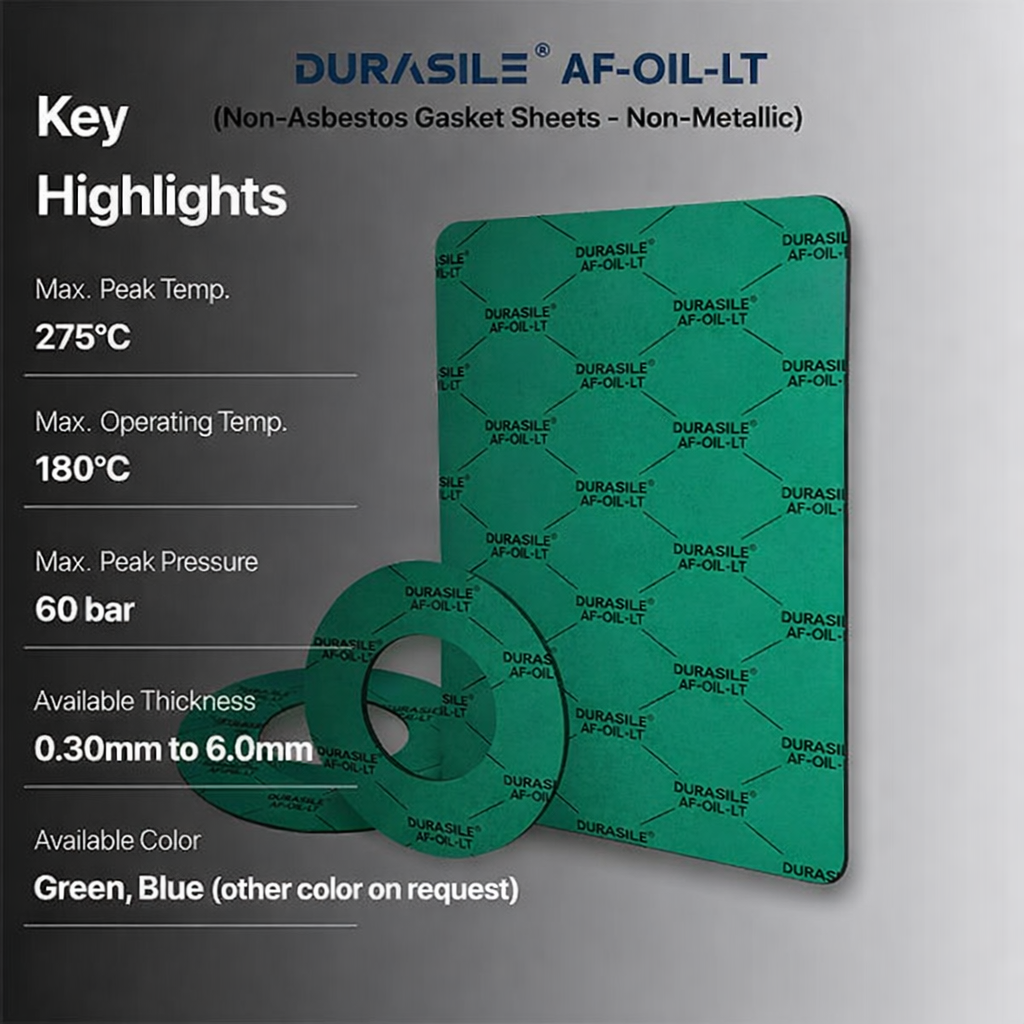

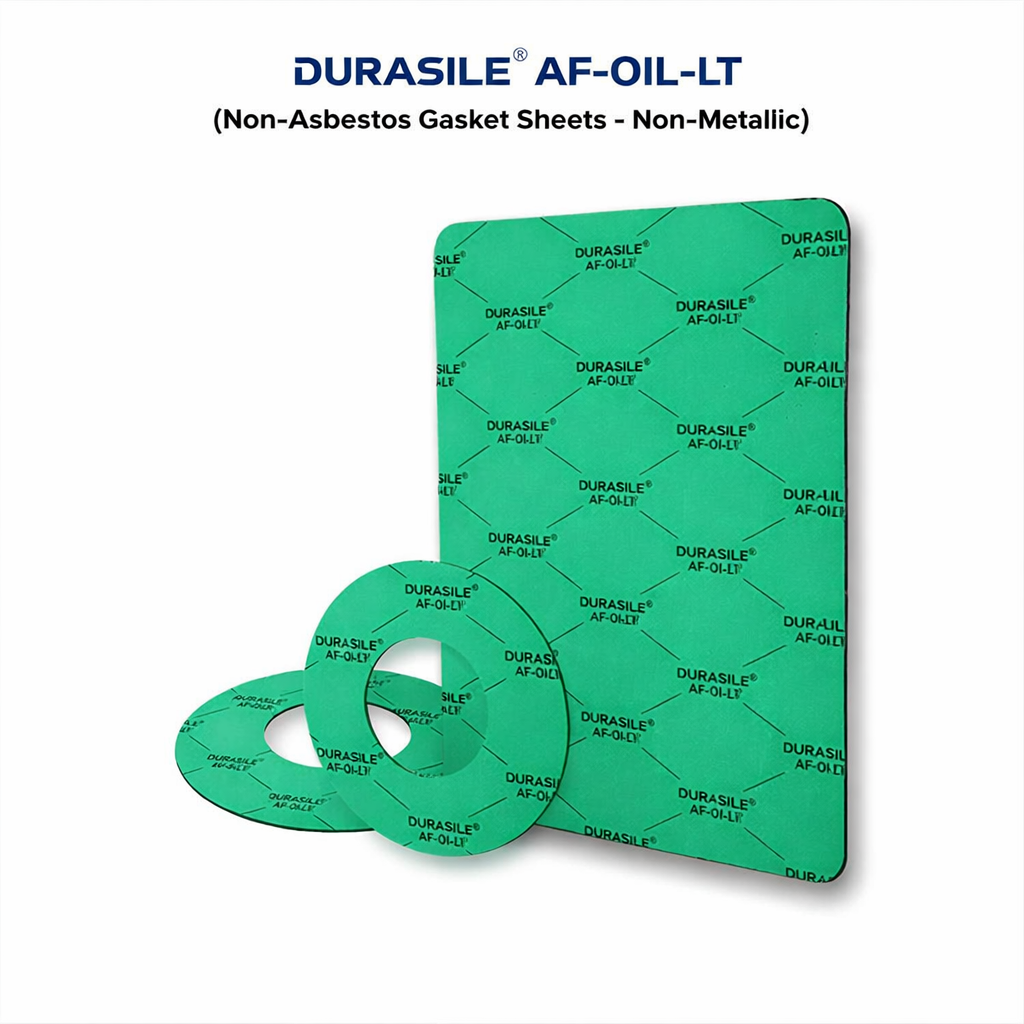

AF-OIL-LT (Non-Metallic)
DURASILE AF OIL-LT (Non-Metallic)
DURASILE AF-OIL-LT is a compressed non-asbestos (CNAF) gasket material that has numerous applications in the process industries, oil industries, power plants, sugar mills and in the water and chemical industries.
It is suitable for oils fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, cooling liquids, most diluted acids and alkalis for medium stress conditions.
Composition :-
DURASILE AF-OIL-LT gasket sheet is produced from a combination of aramid fibres and organic fibres which are bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification
Compliance : ASTM F 104 Line call out: F712122A9B4E12M9
| Technical Details | |
|---|---|
|
Maximum Peak Temperature °C |
300°C |
|
Maximum Operating Temperature °C |
220°C |
|
Maximum Peak Pressure (bar) |
80 bar |
|
Available Thickness (in mm) |
0.50 – 5.00 (other thickness available on request) |
|
Available Colors |
Green, Blue, Red (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
- Diluted alkalis
- Aliphatic solvents
- General chemicals
- Water
- Industrial oils
- Refrigerants
- Petroleum and Derivatives
- Air
- Automotive and Engine Building Industries
- Gas Supply
- General Supply
- Shipbuilding
